In an era of relentless digital information flow, massive amounts of data traverse electronic devices worldwide every second. Whether this deluge of data reaches its destination smoothly, accurately, and at high speed depends fundamentally on the quality of its underlying pathway—the Printed Circuit Board (PCB). When digital signal speeds surpass a critical threshold, the ordinary “village paths” become inadequate, necessitating an upgrade to a broad, smooth “superhighway.” This is the moment for High-Speed PCBs to take center stage. They are not merely the skeleton of electronic systems but the “neural network” that determines their performance ceiling. Today, let’s delve into the secrets of this “signal superhighway” and see how a professional manufacturer like JERICO can pave this road to success for you.

Why Focus on High-Speed PCB Materials? An Inevitable Choice of Our Time?

We live in a data-driven world. From every touch response on your smartphone to the roaring computations of server clusters in data centers, from the millisecond path decisions made by autonomous vehicles to high-performance computing platforms unraveling life science mysteries – behind it all lies an extreme pursuit of high-speed data transmission and processing.

This silent revolution poses unprecedented challenges for the PCB, the foundation of all electronic systems. When signal rates climb to several Gbps or higher, traditional PCB materials are like bumpy, unpaved roads, causing signal “vehicles” to jolt severely, delay, or even “crash” (distort). High-speed PCBs are the key technology born to solve this problem. Through specialized materials, design, and processes, they ensure the integrity, stability, and efficiency of high-frequency signals during transmission, making them indispensable core components in modern high-end electronic equipment.

This article provides a comprehensive overview of High-Speed PCBs, covering core definitions and key characteristics, as well as material selection, industry applications, and the current domestic production landscape, along with future market prospects. It offers a thorough technical guide.

What is a High-Speed PCB? It’s Not Just About “Speed”!

The industry often defines PCBs where the signal rate exceeds 45-50MHz and high-speed signals dominate the design as High-Speed PCBs. But this definition doesn’t tell the whole story. The essence of a High-Speed PCB is a battle to defend “Signal Integrity.”

Imagine a Formula 1 race track. It requires not just long straightaways (fast transmission speed) but also a smooth surface, precisely designed curves, and efficient pit-stops (signal relaying). In the design and manufacture of High-Speed PCBs, we similarly focus on:

A. Low-Loss Materials: Like high-quality asphalt for the track, reducing signal energy loss.
B. Fine Traces and Impedance Matching: Like precise curve design, preventing signal reflection and distortion.
C. Strict Layer Stack-up and EMC/EMI Control: Like scientific barriers, reducing crosstalk between channels and electromagnetic interference.

Showcase and Interpretation: A Glimpse of Our Technical Prowess

Isola 370HR high-speed board

As shown, this 10-layer high-speed prototype board we manufactured is a perfect embodiment of the above principles:
– Core Material: Uses Isola 370HR high-speed laminate, laying the foundation for low-loss signal transmission.
– Structure & Process: 2.0mm board thickness, with a 0.5OZ inner layer and 1OZ outer layer copper design, striking an optimal balance between signal integrity and power integrity.
– Reliability Assurance: Metal-edged frame on the perimeter enhances structural strength and improves electromagnetic shielding performance.
– Advanced Detail: Vias on solder pads are all filled with resin and electroplated flat. This not only avoids the risk of solder bead residue during assembly but also clears obstacles for placing fine-pitch BGA components on the pads later.

How to Choose High-Speed PCB Materials? The “Cornerstone” for Building the High-Speed Road

Selecting the right high-speed material is the first step to a successful design. With numerous brands available, the core electrical performance remains paramount.

Five Core Characteristics of High-Speed PCB Materials:

1. Low Dielectric Constant (Dk) – Increases Signal Speed
The Dielectric Constant (Dk) is an inherent electrical property of the material that affects the propagation speed of signals within the dielectric. A lower Dk value results in less signal propagation delay. This is like running through media of different densities-moving through air (low Dk) is much faster than moving through water (high Dk). Choosing a low-Dk laminate is the foundation for ensuring your signals are “one step ahead.

2. Low Dissipation Factor (Df) – Ensures Signal Strength and Clarity
The Dissipation Factor (Df) measures the material’s ability to absorb signal energy and convert it to heat. At high frequencies, materials with high Df cause signals to attenuate rapidly during transmission, like a wall that absorbs sound extremely well, preventing shouts from traveling far. Low-Df laminates ensure signals travel further and remain clearer, which is crucial for high-speed links above 10Gbps.

3. Stable Dk/Df – Handles Complex Frequency Environments
Many materials perform well at low frequencies but see their Dk/Df degrade as frequency increases. Superior high-speed materials maintain parameter stability across a wide frequency range, ensuring signals of different frequencies “advance side-by-side,” avoiding phase distortion.

4. Excellent Thermal Performance – Ensures Long-Term System Reliability
High-speed operation implies increased heat generation. A high Glass Transition Temperature (Tg) ensures the laminate doesn’t soften, deform, or lose its properties at elevated temperatures. Good thermal conductivity helps rapidly dissipate heat from the board surface to heat sinks or the environment, preventing localized hot spots from becoming the “Achilles’ heel” of system stability.

5. Good Mechanical and Chemical Stability – Withstands Manufacturing and Use Challenges
Laminates must endure multiple harsh processes like high-temperature lamination, chemical copper plating, and soldering, while also facing challenges like vibration and moisture in the end product. Excellent mechanical strength and chemical resistance are essential for “endurance.”

Tour of Mainstream High-Speed PCB Material Brands:

Isola Series:
Such as FR408HR, IS620, etc., offer a complete product line from cost-effective enhanced FR-4 to very low-loss materials, representing a major force in the North American market.

Panasonic Megtron Series:
Like Megtron 4, Megtron 6, are benchmarks for top-tier low-loss materials in the industry. Known for their extremely low Df and exceptional reliability, they are the preferred choice for high-end servers and network switches.

ITEQ IT Series:
Such as IT180, a high-Tg, mid-loss high-speed FR-4 material, strikes a good balance between performance and cost, widely used in communications and automotive electronics.

TUC Series:
Like Tuc862, 933, etc., are strong competitors in the domestic market, offering diverse options to meet different customer design and budget needs.

The Rise of Domestic Capability:
Manufacturers represented by Shengyi Technology and Huazheng New Material are making rapid progress. Their some high-end product lines can now compete with international brands, providing valuable options for supply chain security and cost control.

The Application Landscape of High-Speed PCBs: The “Invisible Engine” Empowering Industries

Communication Infrastructure: 5G base stations/antennas and optical transmission equipment are the “largest consumers” of High-Speed PCBs. Data rates here are extremely high, demanding the most stringent requirements for material, low loss, and stability.

Data Centers & Cloud Computing: The backplanes and mainboards inside servers, switches, and routers are responsible for data exchange – their performance directly determines a data center’s throughput capacity.

Advanced Driver-Assistance Systems/Autonomous Driving: Automotive radar, LiDAR, and high-speed image processing systems require automotive-grade High-Speed PCBs that operate stably in harsh vehicle environments.

High-End Computing & Artificial Intelligence: AI accelerator cards and GPU servers processing massive parallel computations require PCBs with very high layer counts, complex HDI, and excellent signal integrity.

Consumer Electronics: The mainboards in high-end smartphones and AR/VR devices pursue ultimate performance while also confronting space constraints and thermal challenges.

Why Choose JERICO as Your High-Speed PCB Partner?

Understanding the technical complexity and importance of High-Speed PCBs makes choosing a reliable production partner crucial for project success. JERICO is your trusted “road construction” expert.

A. In-Depth Technical Consultation & Design Support
We are more than just a manufacturer. Our team of senior engineers, with an average of over 16 years of experience, can engage from the early project stages, offering professional advice on stack-up design, impedance calculation, and routing strategies, helping you optimize your design, avoid pitfalls, and perfectly realize your design concept.

B. Advanced Process Equipment & Material Mastery
We deeply understand that “a craftsman must sharpen his tools to do his work well.” JERICO continuously invests in advanced equipment like laser drilling, vacuum presses, and Automated Optical Inspection. We possess extensive production experience and in-depth process parameter knowledge for global mainstream high-speed materials. Whether it’s Megtron, Isola, Shengyi, or Huazheng, we can handle them with ease, ensuring product performance meets design expectations.

C. End-to-End Quality Commitment
From incoming raw material inspection, through 100% electrical testing, AOI during production, to final impedance and TDR testing, we have established a comprehensive quality control system. Our mature mastery of key processes like back drilling, resin plugging, and mixed-material lamination is a solid guarantee for your product’s high reliability.

D. Global Service & Flexible Supply Chain
We deeply understand the global clients’ needs for delivery times and communication efficiency. JERICO provides efficient global service and local support, ensuring smooth communication. Whether it’s a quick response during the prototype quick-turn phase or stable supply for high-volume production, we can offer flexible delivery options to meet your needs throughout the entire product lifecycle from R&D to mass production.

E. One-Stop Solution, Simplifying Complexity
To further simplify your supply chain management, JERICO can provide component sourcing and complete PCBA services. From bare board manufacturing to finished assembly delivery, we offer seamless integration, helping you reduce management costs and accelerate time to market.

Showcase and Outlook: A Testament to Our Capabilities

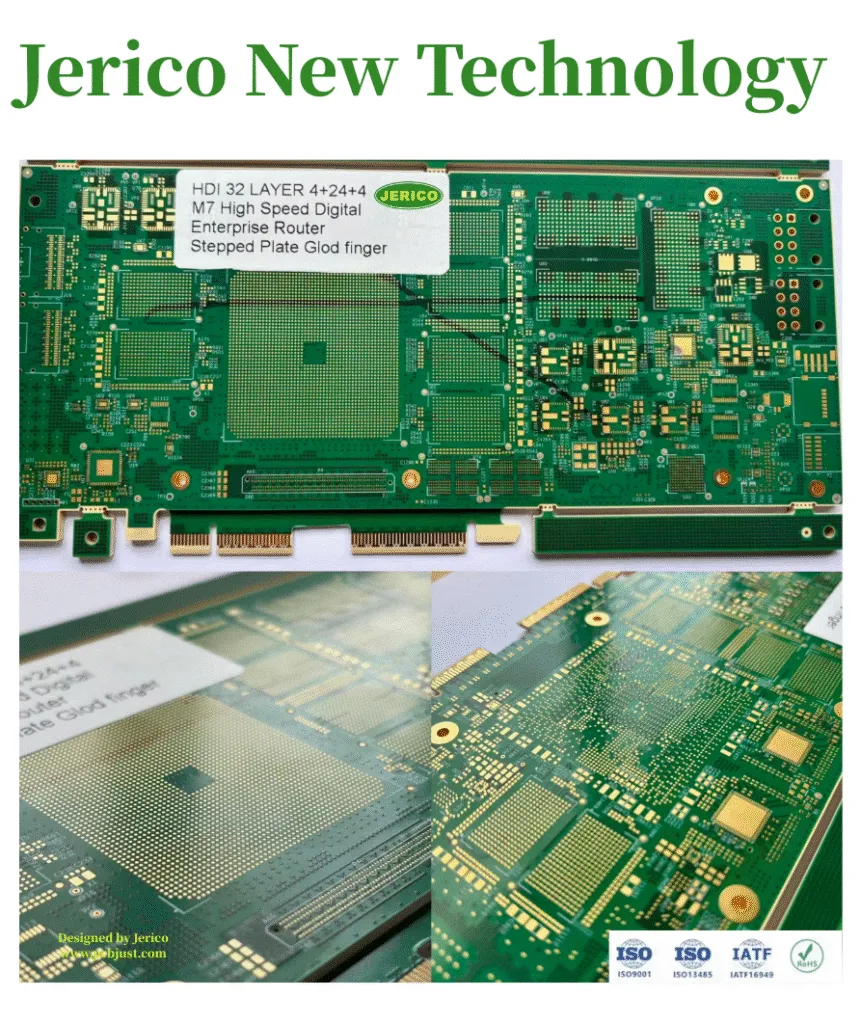

(Jerico 32L high-speed board )

This highly complex 32-layer high-speed board is a concentrated display of our comprehensive technical strength. It integrates cutting-edge technologies like extreme layer count, strict impedance control, and advanced back drilling, widely used in high-end networking and computing equipment, representing the forefront of current PCB manufacturing.
