In some high-thermal-density applications, such as LED lighting, automotive electronics, and telecommunications, aluminum PCBs are becoming the invisible king in modern electronics manufacturing.

As electronic devices continue to evolve towards higher performance and smaller size, heat dissipation has become a major challenge for engineers. Aluminum PCBs, as an innovative printed circuit board, are becoming the preferred solution for high-power electronic designs due to their excellent thermal management capabilities.

According to statistics, the global single-sided aluminum PCB market sales are expected to reach 7.5 billion USD in 2031, a compound annual growth rate was 6.4%, reflecting the rapid growth and broad demand of the aluminum PCBs market.

I. Aluminum PCB: Structure & Thermal Management Advantages

1.1 Basic Composition of Aluminum PCB

Aluminum PCB is one kind of special metal PCB, it mainly composed of three layers: aluminum substrate, insulation layer, and copper circuit layer.

This kind of combination makes aluminum PCB have excellent thermal conductivity and electrical insulation at the same time. Aluminum PCBs normally have nice thermal conductivity and can conduct the heat via components; an insulation layer ensures the insulation performance of the circuit to prevent short-circuit and leakage.

1.2 Excellent Thermal Management Ability

Compared with traditional FR-4 PCB, the biggest advantage of aluminum PCB is its excellent thermal management. The thermal conductivity of aluminum PCB is much higher than that of traditional PCB, which ensures its extraordinary performance in high-power density applications. When the electronic components are working, the generated heat will be conducted rapidly by the aluminum PCB and prolong its lifetime.

The experiment results indicate, the thermal conductivity of high-quality aluminum PCBs can reach 1.0-3.0W/m·K, which is much greater than traditional epoxy substrates. This kind of highly effective heat dissipation feature of aluminum PCB ensures the stable electrical performance under high temperatures.

II. Multiple Performance Advantages of the Aluminum PCBs

2.1 Mechanical Strength & Stability

Aluminum PCB not only has excellent thermal conductivity, but also has nice mechanical strength & stability. Compared with other materials, aluminum PCBs are not easily deformed and can bear relatively high mechanical pressure and vibration.

This characteristic has led to the widespread use of aluminum PCBs in areas requiring pressure and shock resistance, such as automotive electronics and industrial control. Furthermore, aluminum PCBs offer stable performance in both high and low temperature environments and are not easily affected by environmental factors, ensuring the reliability of electronic equipment in harsh environments.

2.2 Electrical Performance & Environmental Advantages

In the electrical performance aspect, the insulation layer of aluminum PCB can effectively prevent the leakage and maintain nice voltage-resistance performance, which makes aluminum PCBs act well in high voltage and frequency applications and can meet all requirements of various complex circuits.

Considering from environmental aspect, the manufacturing and use process of aluminum PCBs is relatively environmentally friendly. Aluminum is highly recyclable and can reduce the burden on the environment after use.

In the meantime, the manufacturing cost of aluminum PCB has certain economic advantages compared with other high-performance materials. In mass production, the cost can be controlled well.

III. Main Types of Aluminum PCBs and Selection Guide

3.1 Rigid Aluminum PCBs: First Choice for High Rigidity Heat Dissipation

Rigid aluminum PCBs utilize a solid aluminum plate as a base material. They offer high mechanical strength and excellent thermal conductivity (1.0-3.0 W/m·K). They are also relatively simple to process and relatively low in cost.

They are primarily suitable for applications requiring structural support, such as LED lighting modules (especially high-power LEDs), power conversion modules, and automotive electronic control units. However, thermal expansion coefficient matching must be considered during design, and they are not suitable for applications requiring curved mounting.

3.2 Flexible Aluminum PCBs: Flexible Solution for Electronic Devices

Flexible aluminum PCBs utilize thin aluminum foil (typically 0.1-0.3mm) as a base material. They offer moderate bendability, high installation flexibility, and are lightweight and thin. These PCBs are primarily used in curved LED displays, wearable devices, and electronic devices with limited space.

When using soft aluminum PCBs, strict control of the bend radius is crucial, and circuit layout must consider the effects of bending stress.

3.3 Rigid-Flex Aluminum PCBs: High-Effectiveness Balance Choice

Rigid-Flex aluminum PCBs combine the advantages of metal and non-metal materials, offering superior insulation performance and a thermal expansion coefficient more closely matching that of copper. However, they are more expensive than standard aluminum PCBs.

They are primarily used in high-frequency power devices, aerospace electronics, and high-reliability industrial equipment.

3.4 Key Parameters Comparison

-. Thermal conductivity performance: rigid aluminum PCB>rigid-flex aluminum PCB>flexible aluminum PCB

-. Mechanical strength: rigid aluminum PCB>rigid-flex aluminum PCB>flexible PCB

-. Assembly flexibility: flexible aluminum PCB> rigid-flex aluminum PCB> rigid aluminum PCB

-. Cost range: rigid-flex aluminum PCB> rigid aluminum PCB>flexible aluminum PCB

IV. Aluminum PCBs Innovation Technology & Future Challenge

Aluminum PCB technology itself continues to evolve to adapt to new application demands, but it also faces several challenges.

Technical Development Focus:

-. High Performance and Composites: Developing composite materials with higher thermal conductivity, improved mechanical strength (such as aluminum-based silicon carbide), and lighter weight is a clear direction.

-. Structural Innovation: Double-sided aluminum PCBs allow circuits to be placed on both sides of the board, achieving higher integration and improved heat dissipation. They are in strong demand in sectors such as 5G communications and new energy vehicles, and are expected to achieve a compound annual growth rate (CAGR) of approximately 12% in the Chinese market over the next few years.

-. Green and Sustainable: Using recycled aluminum raw materials and reducing energy consumption and carbon emissions in the production process have become essential requirements under global environmental policies (such as the EU carbon border tax).

Challenges:

-. Cost and Supply Chain Pressure: The raw materials for high-end composite materials (such as silicon carbide) are expensive, and price fluctuations in metals such as aluminum and copper can introduce uncertainty into production plans.

-. Technical Barriers and Competition: The manufacturing process for high-performance products is complex and has high technical barriers, leaving domestic companies facing competitive pressure from international manufacturers.

-. Competition from alternative materials: In some areas with extreme requirements on weight or performance, aluminum PCBs also face competition from new materials such as carbon fiber composites.

V. Typical Applications of Aluminum PCBs

5.1 LED Lighting

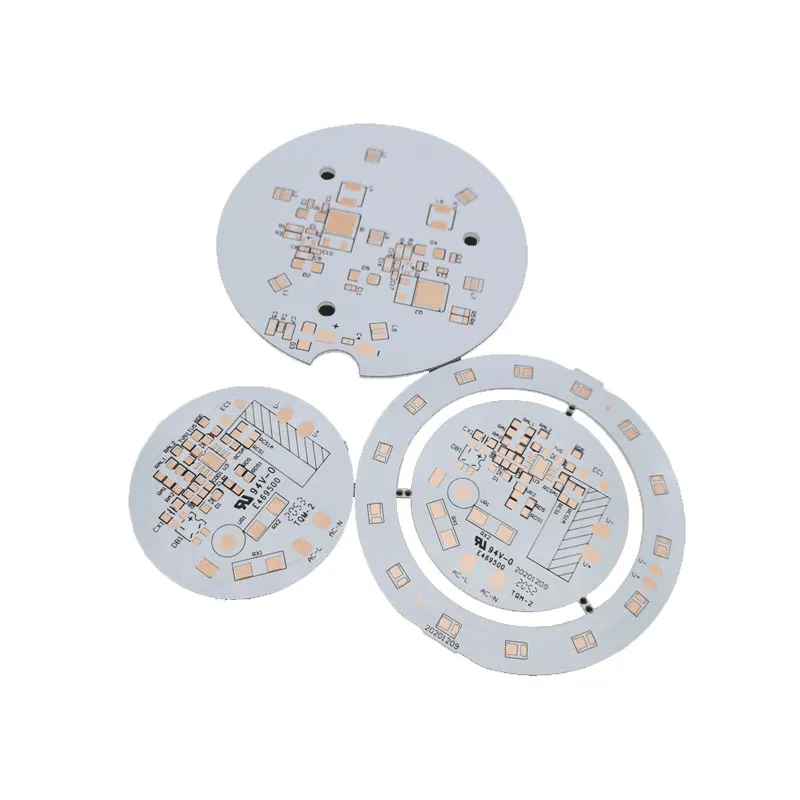

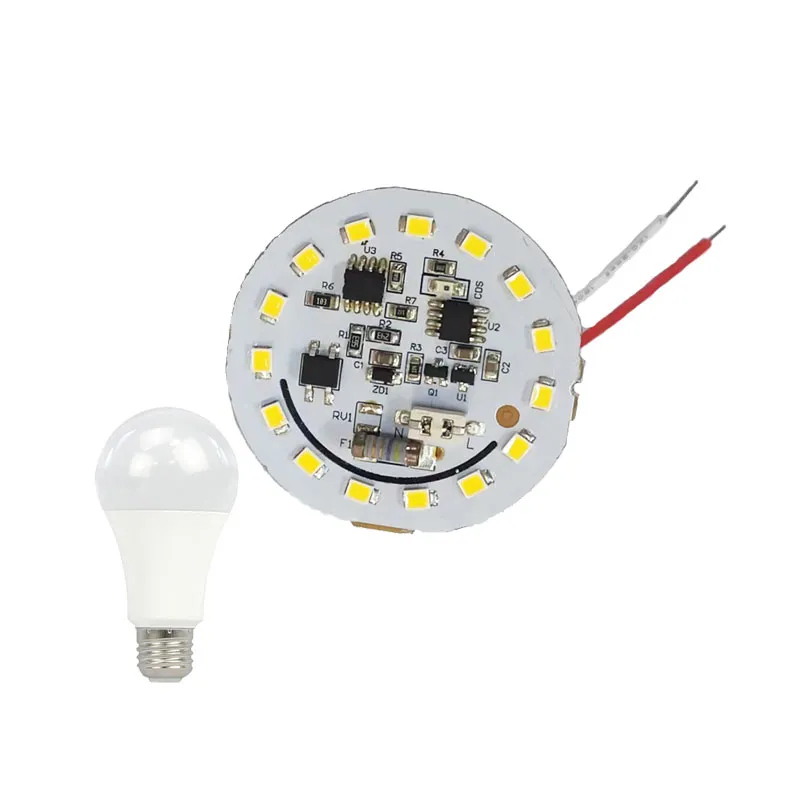

In LED lighting, aluminum PCBs are used to support the LED chip and offer effective heat dissipation, to ensure the LED lighting’s effectiveness and lifetime.  With the popularity of high-power LEDs, the application of aluminum PCBs in this field has become an industry standard.

5.2 Automotive Electronics

As vehicles become increasingly intelligent and electronic, aluminum PCBs are becoming increasingly common in automotive electronics, such as instrument panels, navigation systems, and powertrain control systems.

The high reliability and heat dissipation requirements of automotive electronics make aluminum PCBs an ideal choice.

5.3 Telecommunication Devices

In communication equipment such as base stations and routers, aluminum PCBs can provide good heat dissipation conditions and maintain stable operation of the equipment. In particular, the promotion of 5G technology has put forward higher requirements for the heat dissipation of high-frequency and high-power equipment, further promoting the application of aluminum PCBs in this field.

5.4 Industrial Control

Aluminum PCBs are widely used in various industrial control equipment, and can ensure stability and reliability in a harsh environment. Industrial environments are often accompanied by harsh conditions such as vibration and high temperature. The mechanical strength and thermal stability of aluminum PCBs just meet these requirements.

VI. Aluminum PCBs Future Outlook

6.1 Market Outlook

According to statistics, the global single-sided aluminum PCB market is expected to reach 3.4 billion USD in sales by 2031, with a compound annual growth rate (CAGR) of 6.4% (2025-2031).

This growth is primarily driven by strong growth in emerging sectors such as new energy vehicles, photovoltaic power generation, and 5G base stations.

6.2 Technology Development Trend

In the future, aluminum PCB technology will develop towards ultra-thinness, high thermal conductivity, and integration.

The development of new materials and improvements in production processes will further enhance the performance and application scope of aluminum PCBs. The expanded application of aluminum PCBs in 5G base stations is a clear example.

6.3 Applications Expansion

With the continuous advancement of technology, aluminum PCBs will play a greater role in emerging fields such as 5G communications, smart homes, and automotive electrification.

At the same time, with the popularization of green building concepts, innovative products such as smart aluminum-plastic panels with integrated photovoltaic power generation will promote the application of aluminum PCBs in the construction field.

As the power density of electronic devices continues to increase, heat dissipation issues will become increasingly prominent. Aluminum PCBs, with their unique advantages, not only solve the heat dissipation problem in high-heat-density applications, but also make it possible to miniaturize and light-weight electronic devices.

In the future, with the widespread use of 5G, IOT, and EV, the technology of aluminum PCB will be developed and offer stable support for the innovation and development of the electronics industry.
